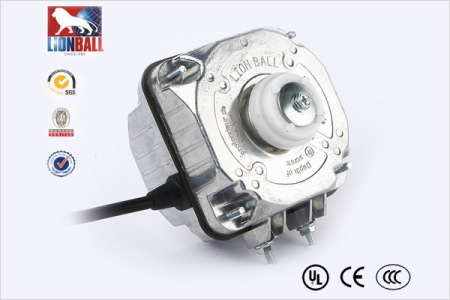

节能(néng)冰冻電(diàn)机ECQ12
1: Parameter of function(電(diàn)机参数)
| Index |
type |
Voltage |
Frequency |
Speed |
Input/Output |
Mass |
|
1 |
ECQ12A230 |
198-253 |
50/60 |
1300/1550 |
22/15 |
0.6 |
|
2 |
ECQ12A115 |
90-128 |
50/60 |
1300/1550 |
22/15 |
0.6 |
2：Airflow(风量测试)

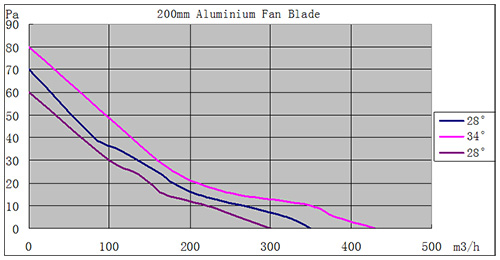

ECQ motor Air performance curves measured at a constant speed of 1,300 rpm.
| Index |
Motor |
Axial impeller |
Axial impeller |
Input |
|
1 |
ECQ12 |
200 |
22 |
5 |
|
2 |
ECQ12 |
200 |
28 |
5.7 |
|
3 |
ECQ12 |
230 |
22 |
8.0 |
|
4 |
ECQ12 |
230 |
28 |
13.1 |
|
5 |
ECQ12 |
230 |
34 |
16.9 |
﹡ Speed = 1300RPM

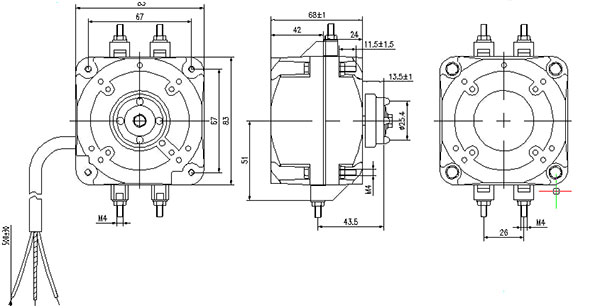

3:Dimension of installation（机械尺寸）
