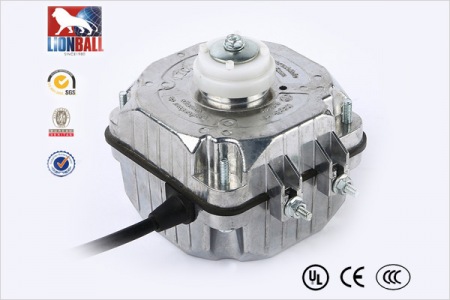

节能(néng)冰冻電(diàn)机ECQ08
1: Parameter of function(電(diàn)机参数)
| Index |
type |
Voltage |
Frequency |
Speed |
Input/Output |
Mass |
|
1 |
ECQ08A230 |
198-253 |
50/60 |
1300/1550 |
8/5 |
0.5 |
|
2 |
ECQ08A115 |
90-128 |
50/60 |
1300/1550 |
8/5 |
0.5 |
2：Airflow(风量测试)

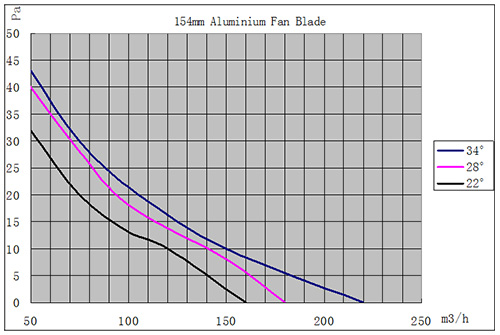

ECQ motor Air performance curves measured at a constant speed of 1,300 rpm.
| Index |
Motor |
Axial impeller |
Axial impeller |
Input |
|
1 |
ECQ08 |
154 |
22 |
3.0 |
|
2 |
ECQ08 |
154 |
28 |
3.9 |
|
3 |
ECQ08 |
154 |
34 |
4.8 |
|
4 |
ECQ08 |
172 |
28 |
4.5 |
|
5 |
ECQ08 |
172 |
34 |
5.2 |
﹡ Speed = 1300RPM

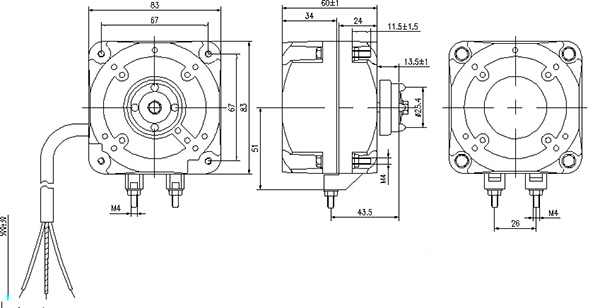

3:Dimension of installation（机械尺寸）
